I want to use an E16C as a video door entry system for a home and communicate with 5 C319 screens, but the calls do not reach it.
On the other hand, how can a visitor have the option of calling the monitors and not be told constantly that he is not recognized? That the button to call reception only appears.
You can see how you can do it in the picture I attached the way you call the reception. It looks like the photo I added. You should write the IP address of the reception in the number field.
Best Regards.
Attachment: 11You have to Login for download or view attachment(s). No Account? Register
You canchange the name of the reception from the marked place in the first photo Iadded below.
If we cometo the second question, you can create a dial plan and run 5 monitors at thesame time. After entering the interface of the device, after pressing theintercom > dial plan > add > button, for example, if you write 1 inthe Prefix section and write 5 numbers as 1 st Replace, 2 st Replace ... andsave, you can call all 5 monitors when you press the number 1 on E16 and pressthe call button.
Attachment: 11You have to Login for download or view attachment(s). No Account? Register

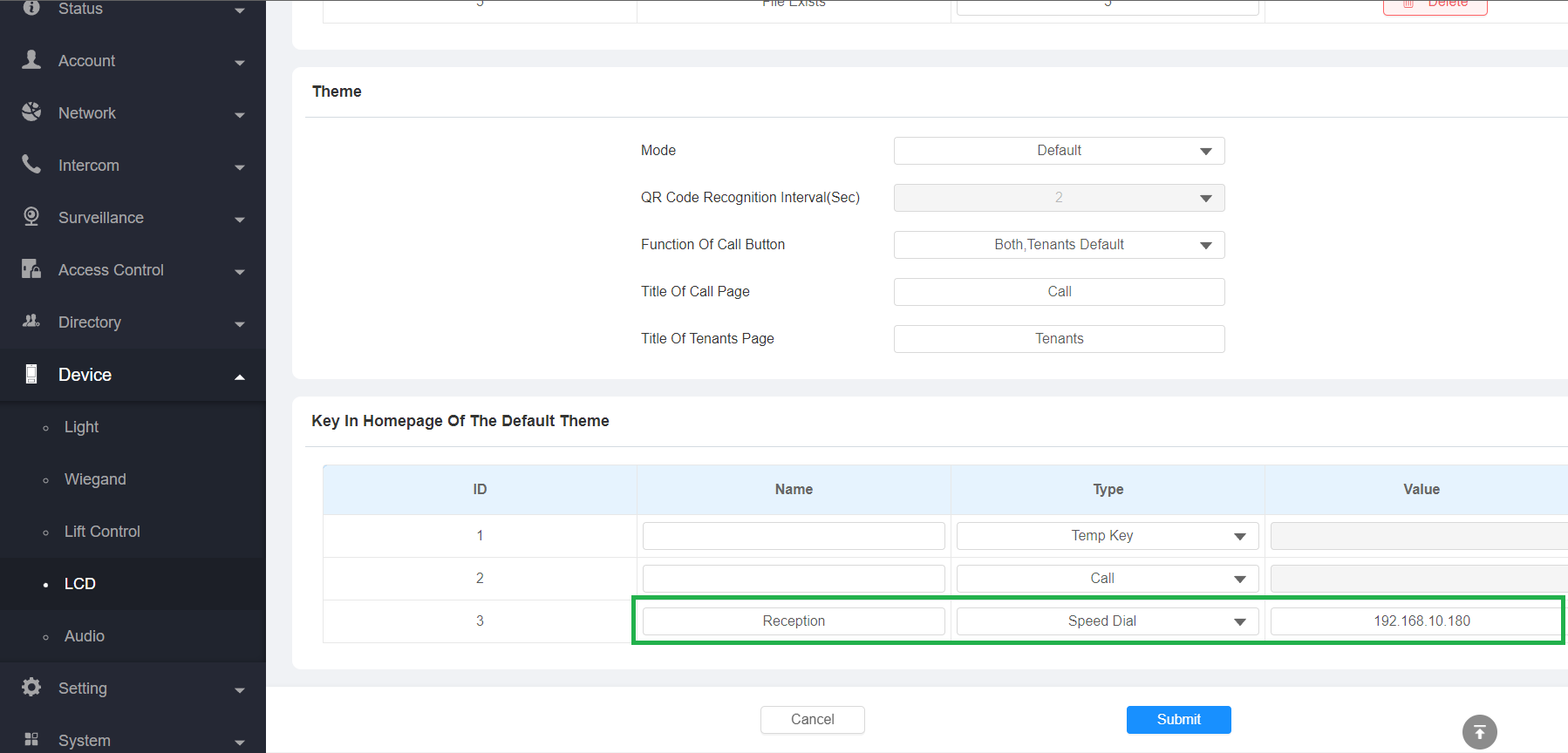

I hope you're well, the reception button on the homepage is within Device -> LCD -> Key in Homepage as displayed below. You can follow the instructions above to use Replace Rules to call multiple devices, otherwise you can split IP Addresses with ;
